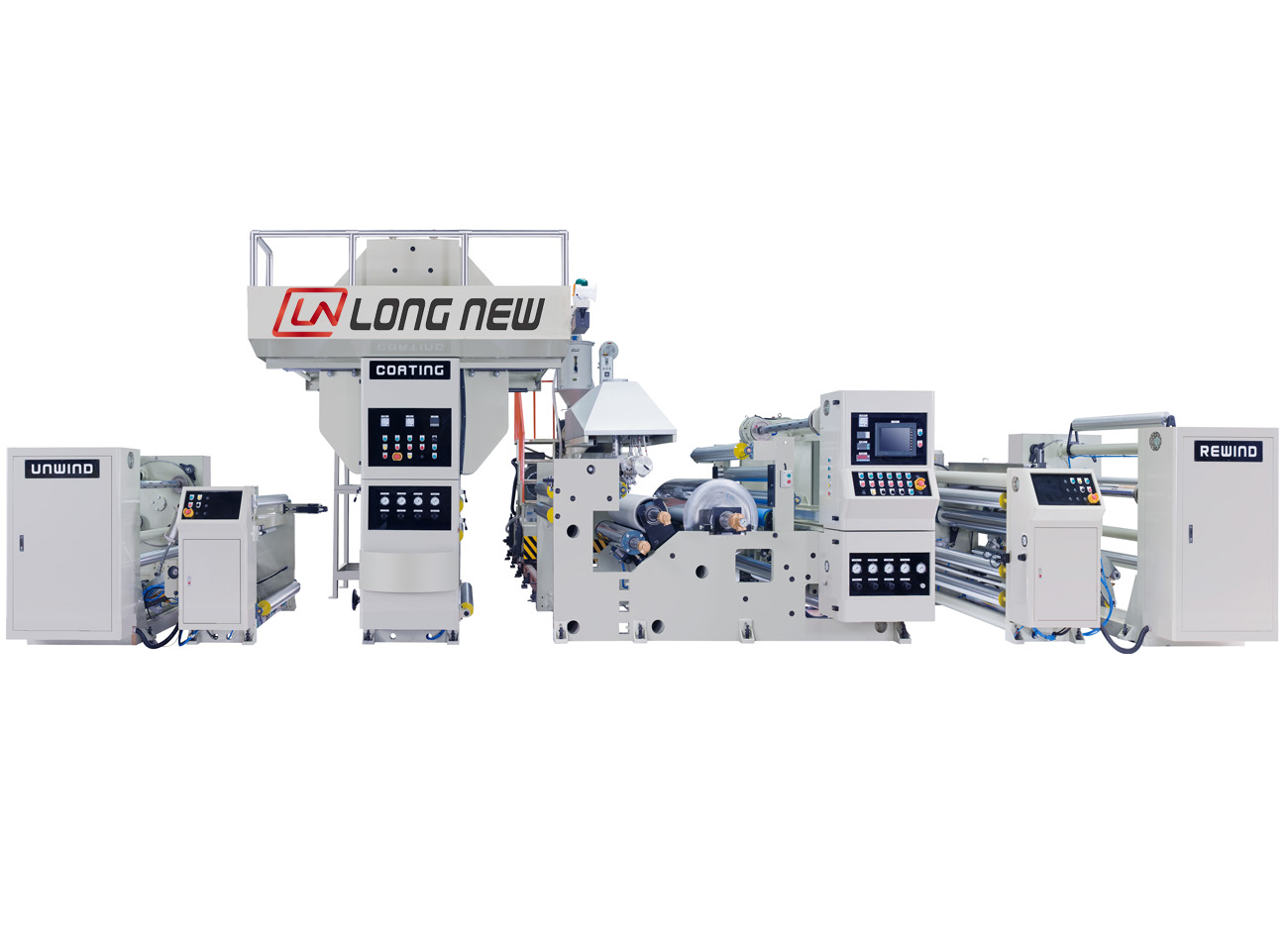

Extrusion Coating-Laminating Machine:

Features:

  • Double-shaft turret unwind and rewind with automatic splicing ensures non-stop operation with minimum wastage.
  • The user-friendly HMI provides convenient adjustment of thickness and speed.
  • Premium quality long life T-die ensures thickness uniformity.
  • Specially designed dual drying chamber equipped at anchor coating section ensures high drying efficiency with energy saving function.
  • Quality extruder with premium T-die (Japan or USA made)
  • Three cooling rollers assembly to provide great laminating performance and achieve excellent bonding strength
  • Teflon tape rotating device to prevent laminating edges from getting stuck on roller

Specifications:

Model LE-1000/LED-1000, LE-1300/LED-1300
Max web width 1000 mm /1300 mm
Max speed 300 m/min
Max. Web Dia. of unwinder and rewinder. 800 mm /1000 mm
Max. Web Dia. of 1st and 2nd sandwich Unwinders 600mm/800mm
Prime Coating Gravure Coating
Applicable web type Printed or laminated material for primary unwind; Aluminumfoil and other plastic film for sandwich unwind
