Sumitomo Heavy Industries Modern:

As necessary tool to the packaging field, this category of line produces laminated films for packages of confectionary snacks and retort pouch foods, paper cartons of milk and liqueur, and packaging of medicines. A broad lineup of single, tandem, co-extrusion and paper-specific lines can deliver the specifications of a wide range of laminated products. Forming performance that ensures stable high quality and rich equipment variations are how Sumitomo Heavy Industries Modern responds to the far-reaching and diversifying needs of today and tomorrow.

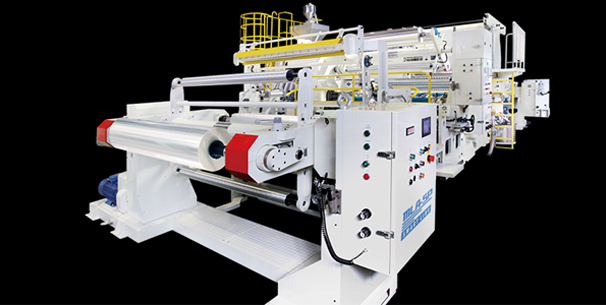

Extrusion Coating Line for Flexible Packaging (MLA series):

Sumitomo extrusion coating line is designed and built to produce soft high-performance films most used as food packaging, etc. We can flexibly customize the system to performance needs.

System configuration of tandem co-extrusion coating line for food packaging:

Max. operation speed	300 m/min
Max. production speed	250 m/min
Base material	OPP (15- 40 µm), MST (20-30 µm), PA (12-40 µm) PET (9-25 µm), PE (18-120 µm), Paper (18-100 g/m2)
Base material width	600-1200 mm
Extruder (Output for LDPE)	Unit-1 screw diameter: 75/90/75mm, Total output: 550 kg/h Unit-2 screw diameter: 75/90/75mm, Total output: 550 kg/h
T-die	Automatic thickness control T-die SMART FLIPPER x2
Applicable resins	LLDPE, LDPE, PP, EVA, EAA, IO
Max. unwinder roll diameter	1000 mm
Max. Auxiliary unwinder roll diameter	1000 mm
Max. winder roll diameter	1200 mm

Application:

Extrusion lamination is essential for packaging just about everything from everyday commodities like foods, beverages, cosmetics, and drugs to state-of-the-art products like electronic equipment.The extrusion coating lines from Sumitomo Heavy Industries Modern come in wide variations-- single, tandem, triple, co-extrusion, and paper-specific configurations --and, by delivering high quality and stable molding performance,meet diversified needs for virtually any kind of new and improved lamination products.

Extrusion Coating Line for Flexible Packaging (MLA-SP series):

This series of high cost-performing extrusion coating lines inherits its basic performance from the top-selling MLA series. The lines are designed and built for anupright balance of precision stability, productivity, and cost-performance with an extruder of high output rate that is applicable with diverse resins, a high-performance T-die that eradicates trouble and losses via top-rate thickness controllability, a simple, compressed, and multifunctional prime coater and a winder system equipped with high precision tension control.
The MLA-SP series delivers highly cost-effective production of laminated products such as packaging for foods, sanitary goods, and cosmetics.

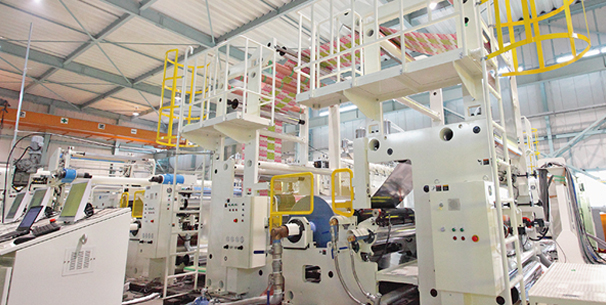

Extrusion Coating Line for Heavy Duty Packaging (MLP series):

This extrusion coating line uses multiple laminator units to laminate materials for release paper and paper containers.

Extrusion Coating Line for High Functional Packaging:

This extrusion coating line is designed and built to produce high functional packaging such as shielding packaging for batteries and electronic products, blister packages for drugs and high-end tubes for cosmetics.
